M5 Mini- Micro Endo Mirrors Full set
Couldn't load pickup availability

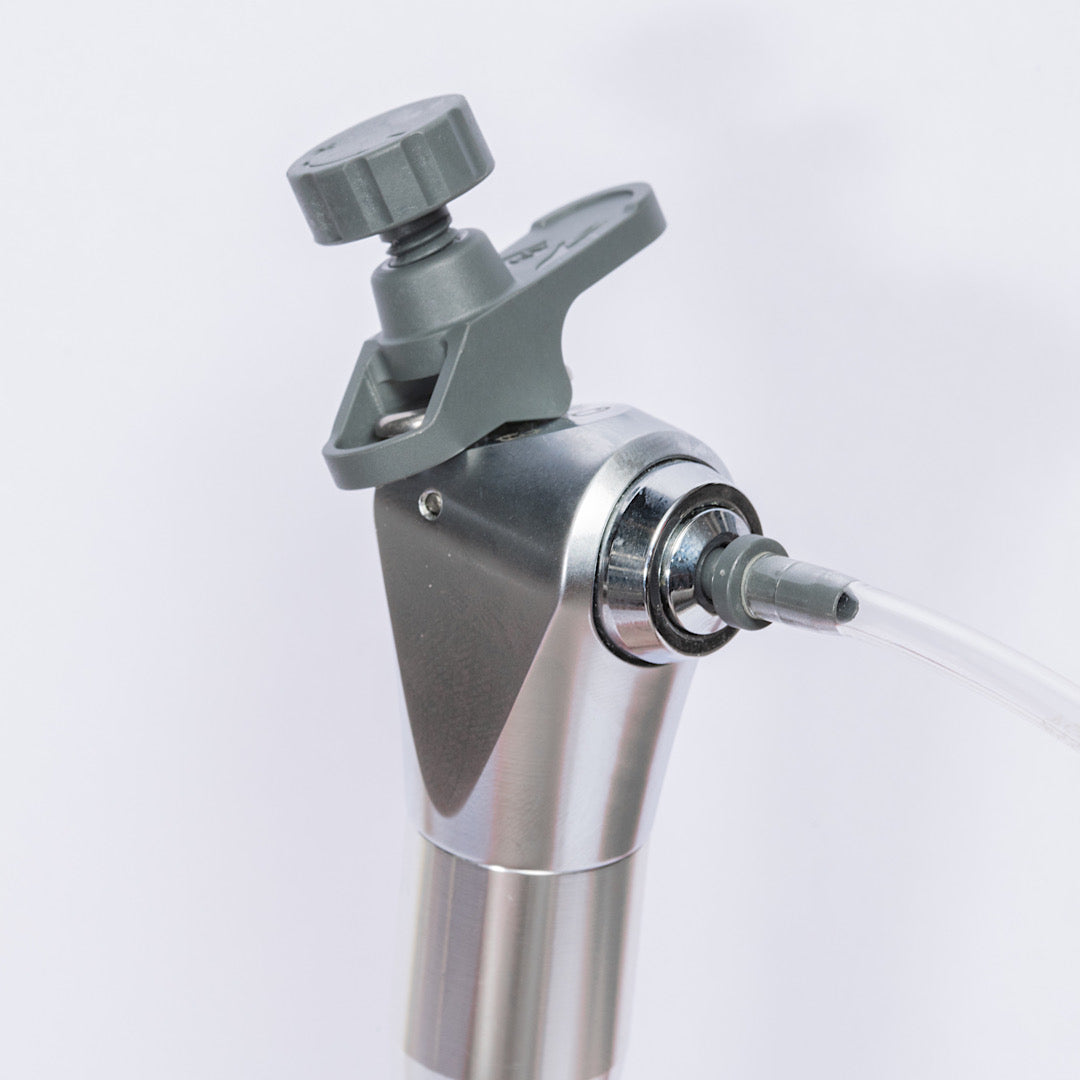

This patented Self Clean Air Dental Mirror system combines an Ultra High Definition front surface alloy coated mirror lens with an industry best reflectance rate of 94-98% with quick connect air tubing for unparalleled working visibility without distraction. The system has two instant plug and use connect options to easily connect the air mirror to your air/water syringe or your dental unit with ease in a few minutes or less without hassle. The quick connect tubing is light-weight and allows for 360 degree free rotation of the handles with minimal drag.
The Dental Mouth Mirror handles are autoclaveable up to 500 cycles at 135 degrees Centigrade.
Easily disconnect the mirrors from the tubing in seconds with the quick connect design.
Product Highlights:

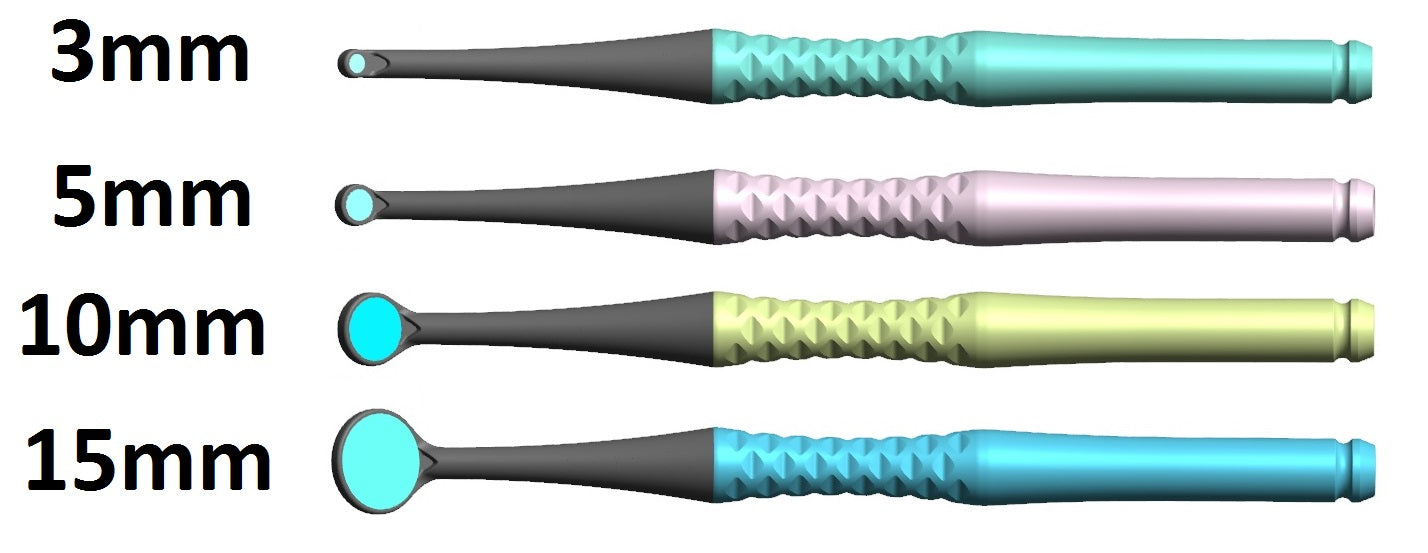

- Micro Lens Sizes are 3.0, 5.0, 10 & 15mm
- Self Clean Air Dental Mirror Uses Air to Clean Lens
- Improved Visibility & Allows for More Efficient Work
- Easy & Instant Plug & Use Air Connect Options - Easy Set Up
- Ultra High Definition Front Surface Alloy Coated Lens (R98%)
- Autoclaveable Medical-Grade Plastic for Optimal Hygiene
Product Includes:

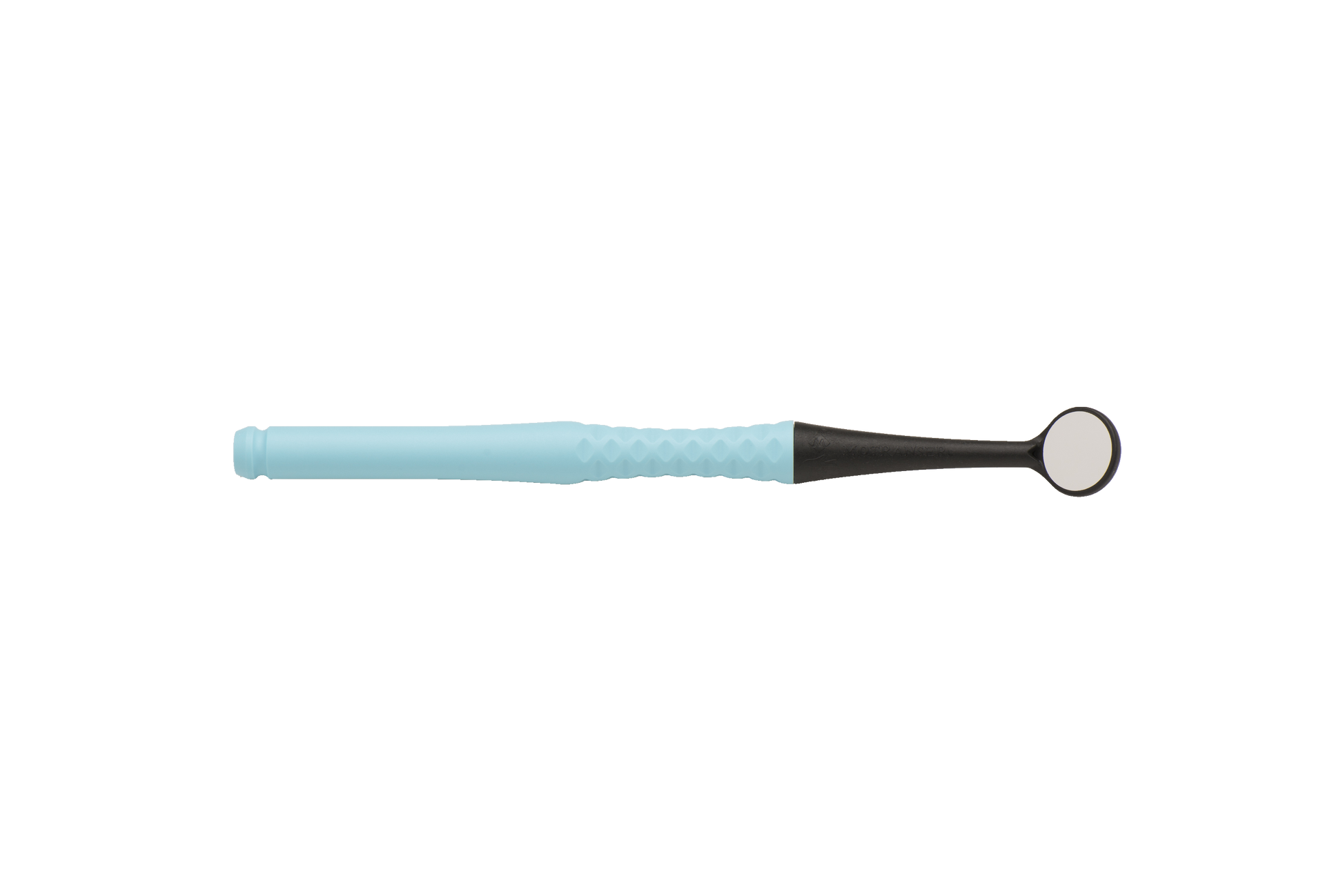

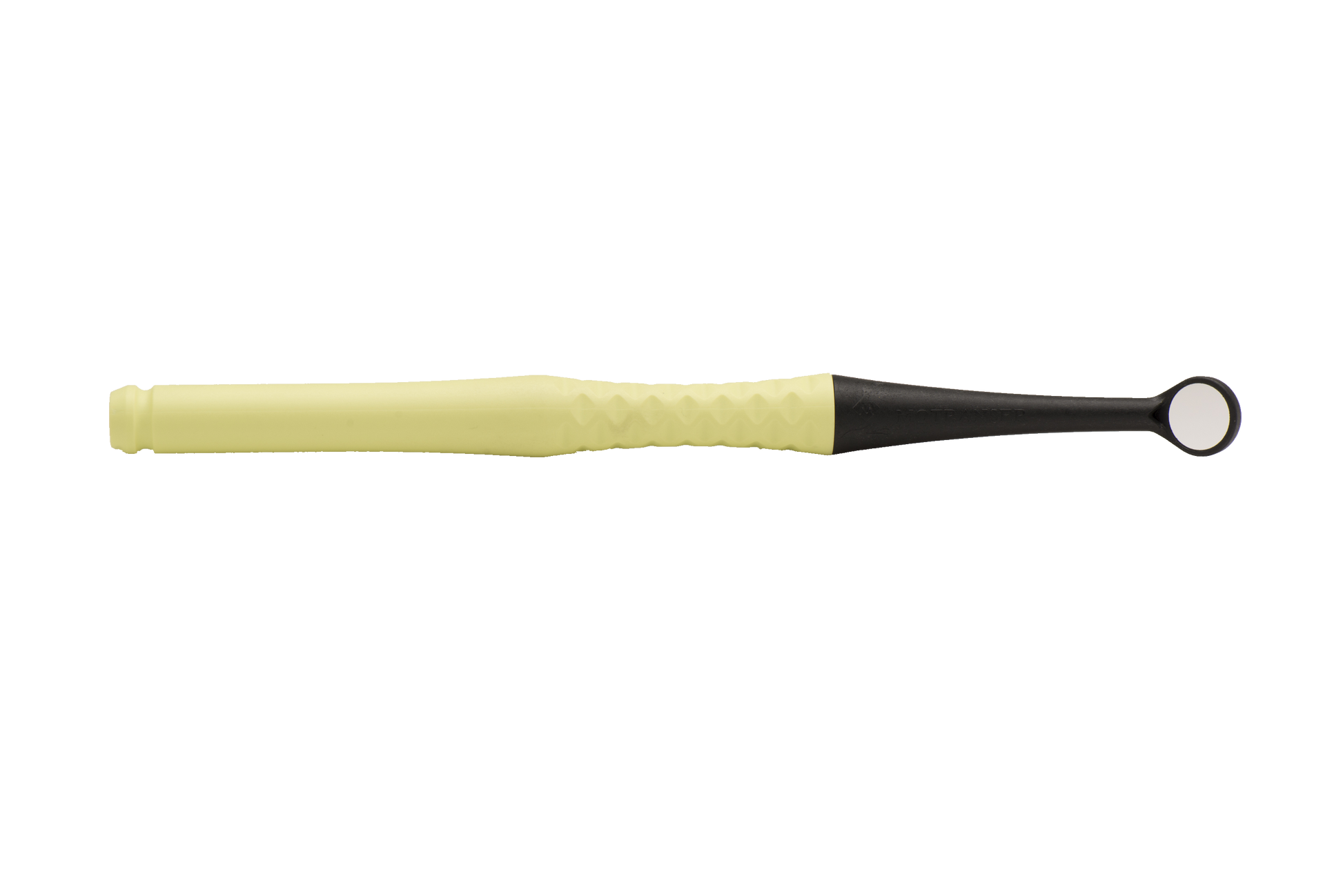

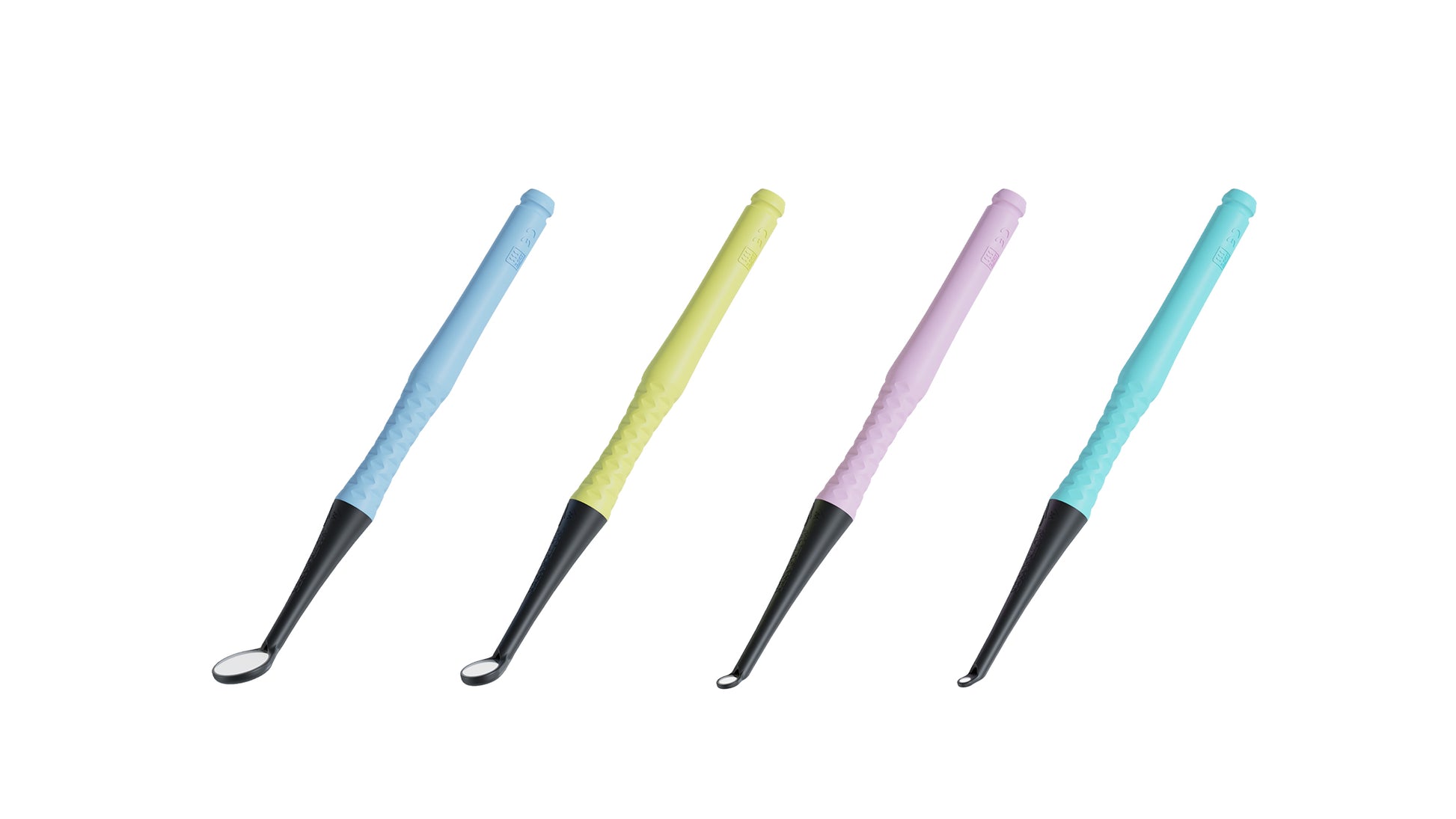

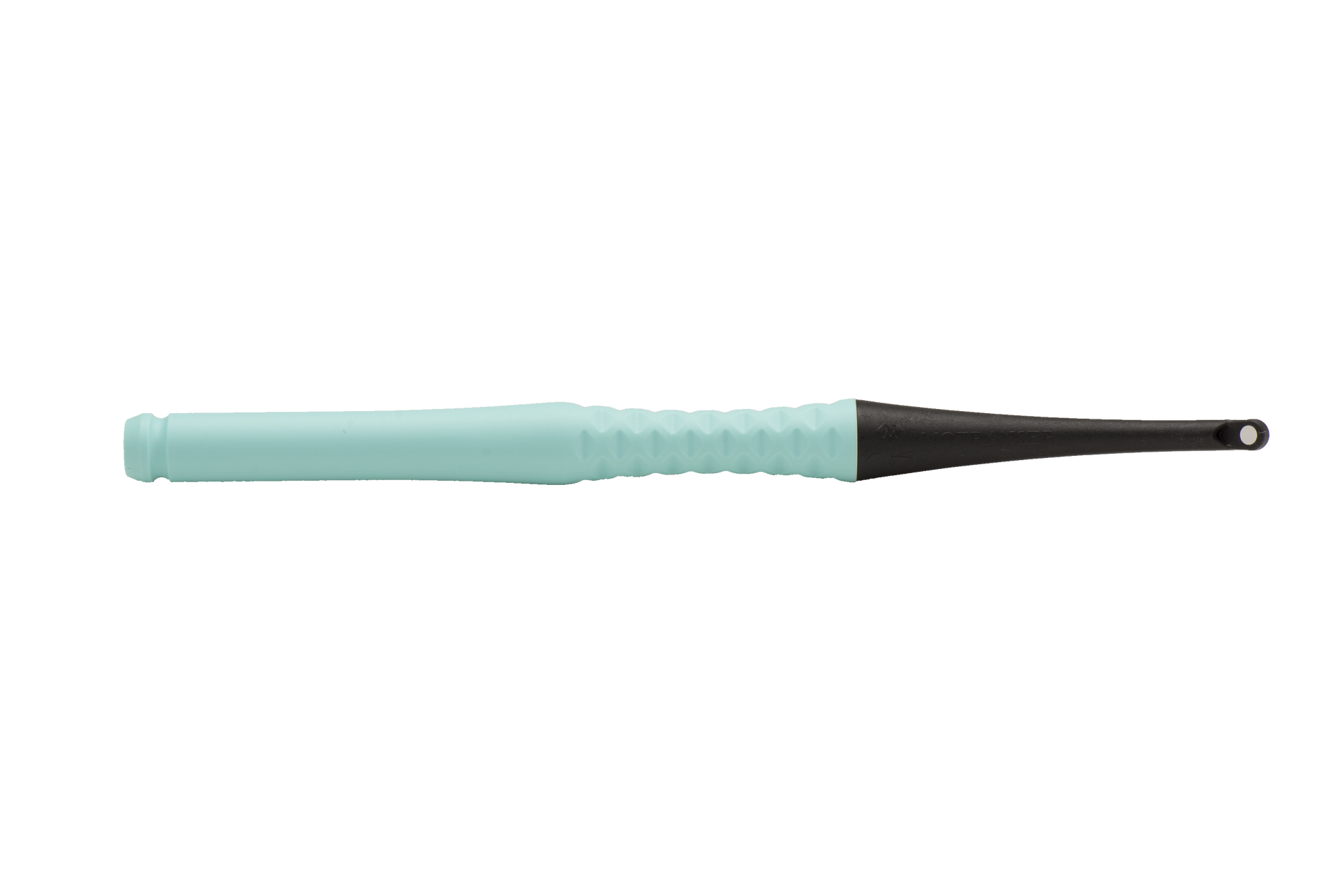

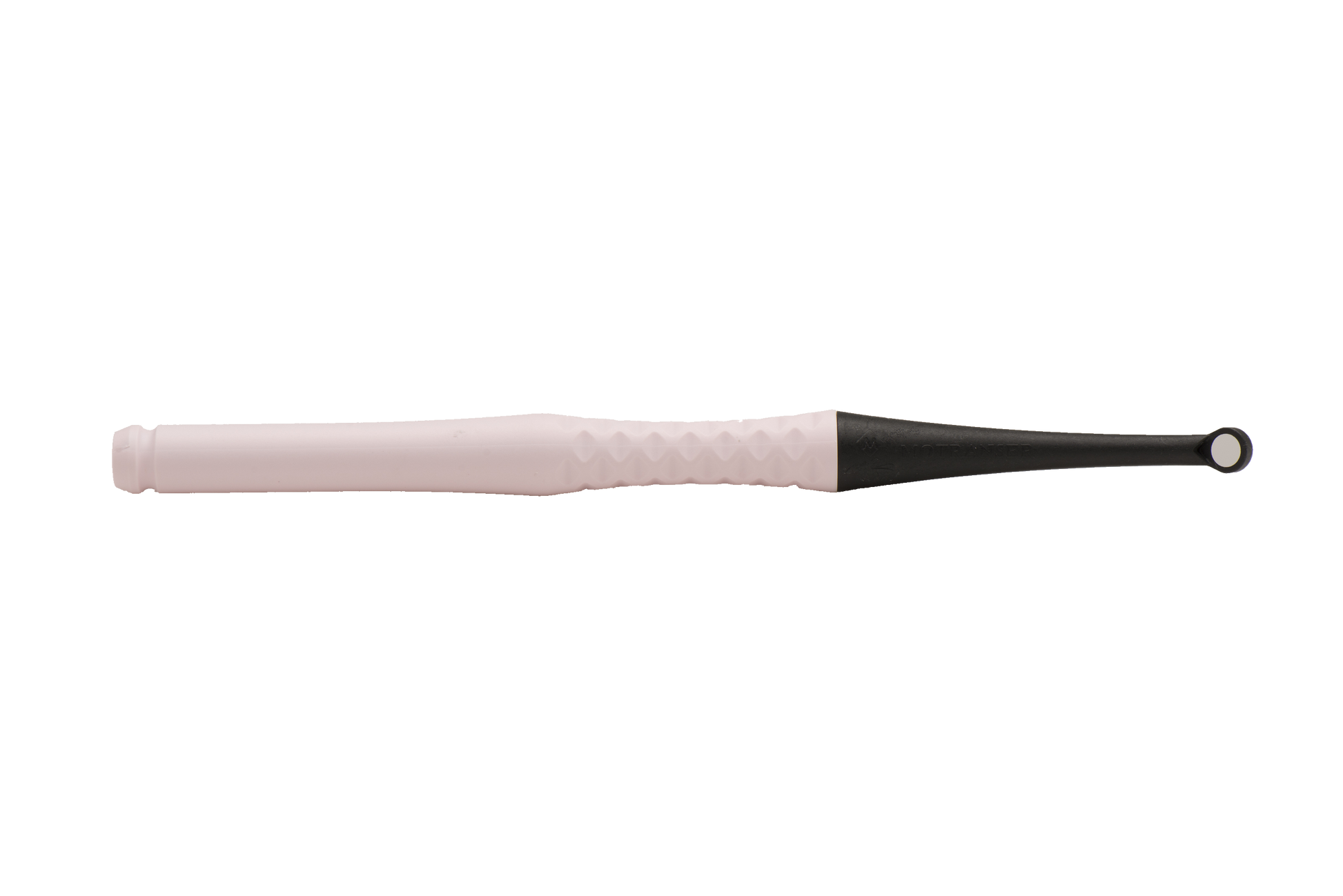

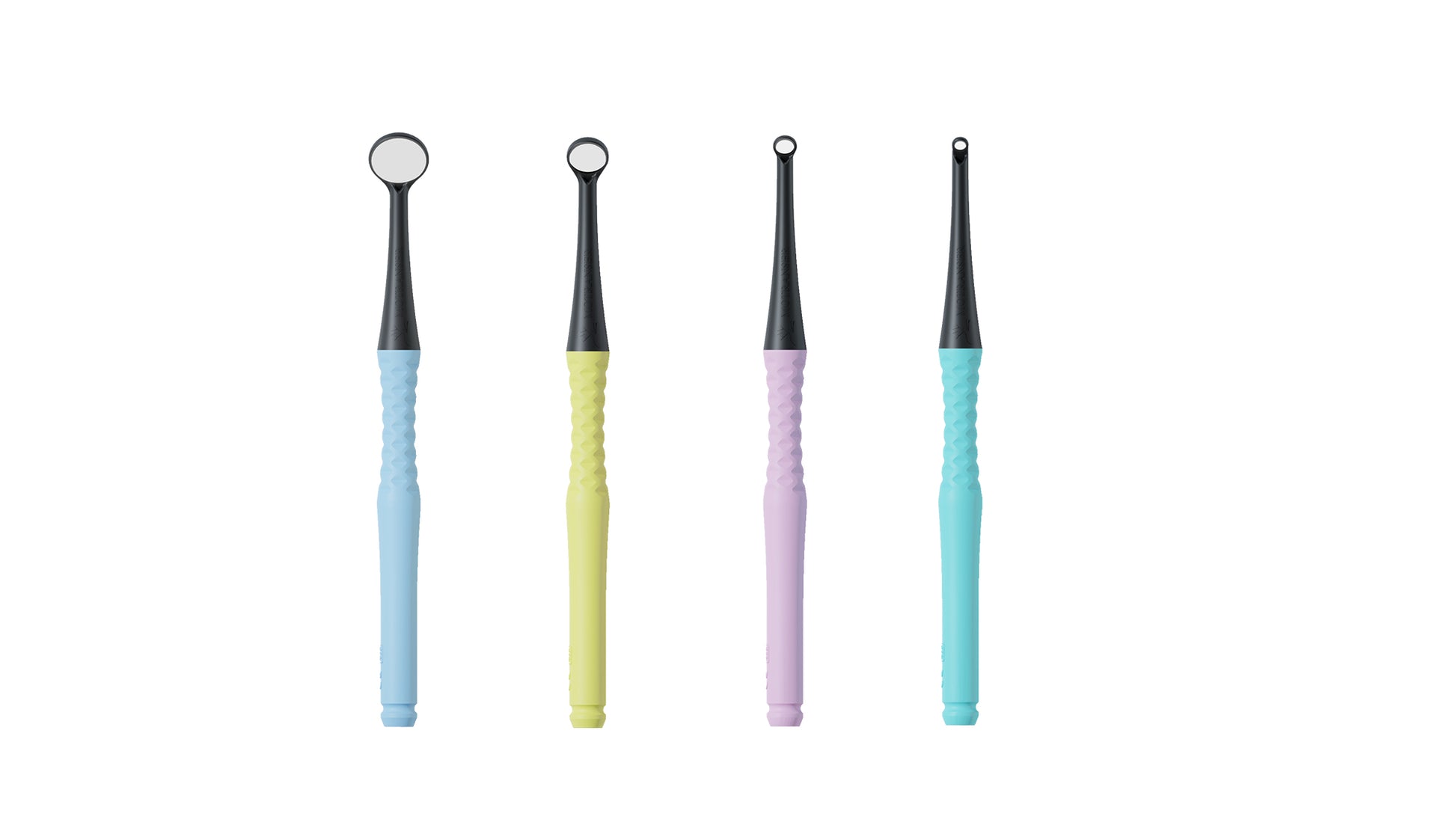

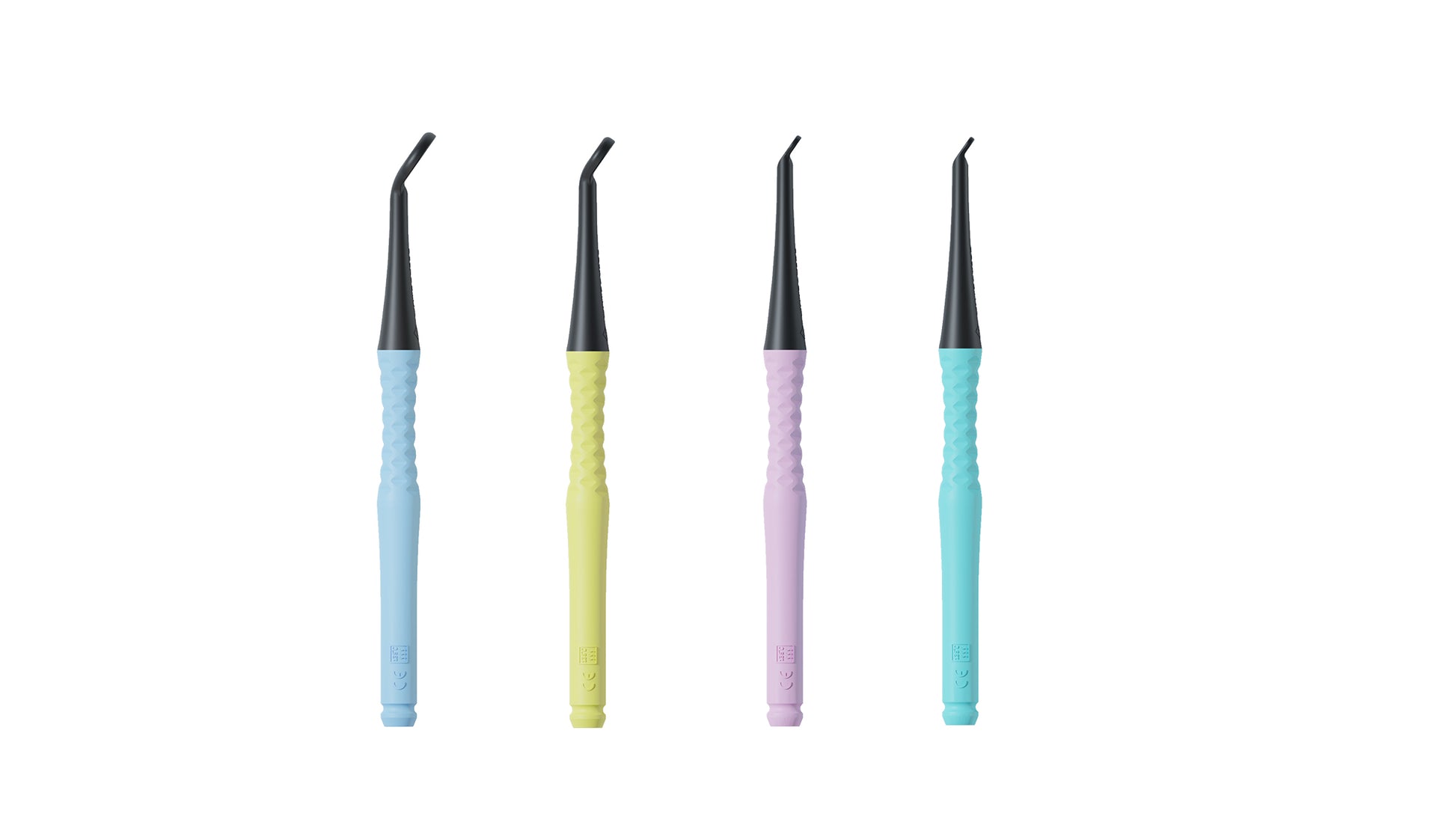

- Assorted Color Dental Mirror Handle: Qty 5 (five) Sizes: 23mm, 15mm, 10mm, 5mm and 3mm
- Air accessory pack:1 (one) set

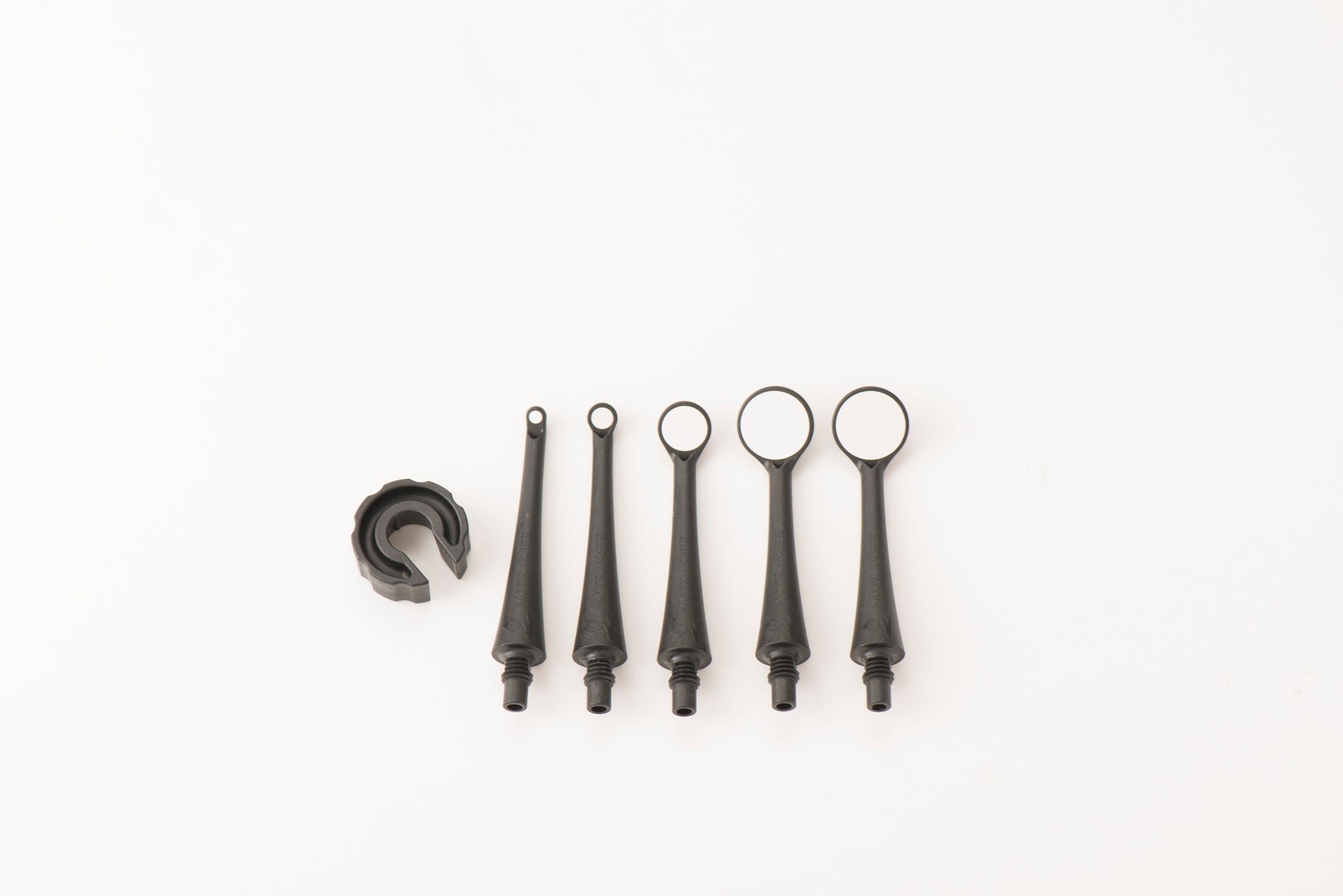

- Replacement head: 4- (4 different sizes)
- Color depends on availability.
Product Specifications:
- Parts Suitable for Autoclave Sterilization- the whole mirror can be soaked and autoclaved
- This item cannot be dry heated.
- Steam Autoclave Setting ( 275° F / 135° C )
- Length: 165 mm
- Weight: 9.3 g
- Air Pressure required: 0.4MPa
-
Operating Conditions
10° C to 40° C (50° F to 104° F)
-
Storage Conditions
-4° F at 50% RH to 122° F at 95% RH
-20° C at 50% RH to 50° C at 95% RH
Disinfection/Sterilization:
The whole system can be soaked in enzymatic solution and can be autoclaved. You may also remove the mirror lens to thoroughly clean the handle of saliva and blood.
THERE ARE NO RETURNS FOR THIS PRODUCT, THE SALE IS FINAL.
Introduce your content
Answer your customers' common questions
How to care for your mirror
Our mirror handles have an average life span of 300 autoclave cycles with Class B autoclaves at 135 degrees centigrade. But even so, It's easy to give your mirrors TLC to make it last longer:
1. Put the cover on after use, before washing, during soaking and sterilization and in storage.
2. Avoid dropping the mirrors.
3. Prior to patient use, make sure that the mirror lens is secured in place. Please check carefully if the lens are placed properly to avoid the lens popping out of the handle. Please make sure the lens is flushed into the handle. Please tap the head of the mirror to check if the lens will loosely pop out. If this is so, please get a new handle already.
4. Use the recommended solutions to clean and disinfect the mirrors (ex. Enzymatic solution)
5. Always pack the mirrors in autoclave pouches and avoid the mirrors to touch the hottest areas of the autoclave.
6. For new mirrors, do not remove the lenses without prior autoclave sterilization.
7. For M1 Light source, please use rechargeable AAA batteries and avoid leaving batteries in the module. Never forget to remove after use. Never soak in Liquid and Never Autoclave or sterilize. Avoid dropping them as well. Like any light source, bulbs can break when dropped. Be careful.
When your mirror handle has aged and gone through a lot of autoclave cycles, it is time to change the handle.
Disinfection and Sterilization
Pre washing with dishwashing soap and smooth, soft sponge or even just the handler's fingers may be done to remove surface debris.
Composites and Bonding agents that may have stuck on the mirror may be cleaned with alcohol based rapid disinfectant such as Deconex Solarsept.
We recommend Deconex Instrument Plus to soak the mirrors in.
The whole mirror can be soaked in enzymatic solution and can be autoclaved except for M1 Bright LED light source module and batteries.
For M1, PLEASE REMOVE THE LIGHT SOURCE IMMEDIATELY AFTER USE OR PRIOR TO SOAKING/WASHING OR DISINFECTION. Light source module can be wiped with disinfectant alcohol wipes ONLY.
For M7, It is best to suction water after use to help clean walls of the hose, before soaking in enzymatic solution. Please use a hose/straw brush to avoid biofilm build up inside the hose's walls and the lumen of the M7 handle while cleaning with enzymatic solution.
You may also remove the mirror lens to thoroughly clean the handle of blood, plaque debris and saliva.
Mirror Replacement
WHEN DO YOU KNOW WHEN IT IS TIME TO REPLACE THE MIRROR?
1. For handles, when the lenses get loose without active removal. If your mirror handle has gone through its life span or the lens has been changed several times, tap the mirror handle head with enough force, if the lens falls out, its time to change the mirror.
2. For lenses, when antifog coating has worn out due to sterilization. Also, when there are obvious signs of scratches that make the lens blurry.
HOW TO REPLACE THE LENS:
It is easy to remove and replace the mirror lenses. Please watch this video for demonstration: https://youtu.be/AiGSYdNFgwM
REMINDERS AFTER REPLACING THE LENS:
1. Always make sure that you have placed the mirror lens correctly and securely.
2. Always use the replacement key to properly secure the mirror lens and return the small black silicone plug in place.
3. Please check carefully if the lens are placed properly to avoid the lens popping out of the handle. Please make sure the lens is flushed into the handle. Please tap the head of the mirror to check if the lens will loosely pop out. If this is so, please get a new handle already.
4. When your mirror handle has aged and gone through a lot of autoclave cycles, it is time to change the handle.
For M2 Magnifying mirrors, we do not recommend to replace lenses and we do not have spare lenses available.
Disposal
We take responsibility for our environment, and for this purpose, we reduce waste as much as possible by our productive activities.
Most products from Motranser are also made of recyclable materials. It is eco-friendly.
The handles can be disposed of as recyclable plastics.
Mirror lenses can be disposed together with your sharps.
